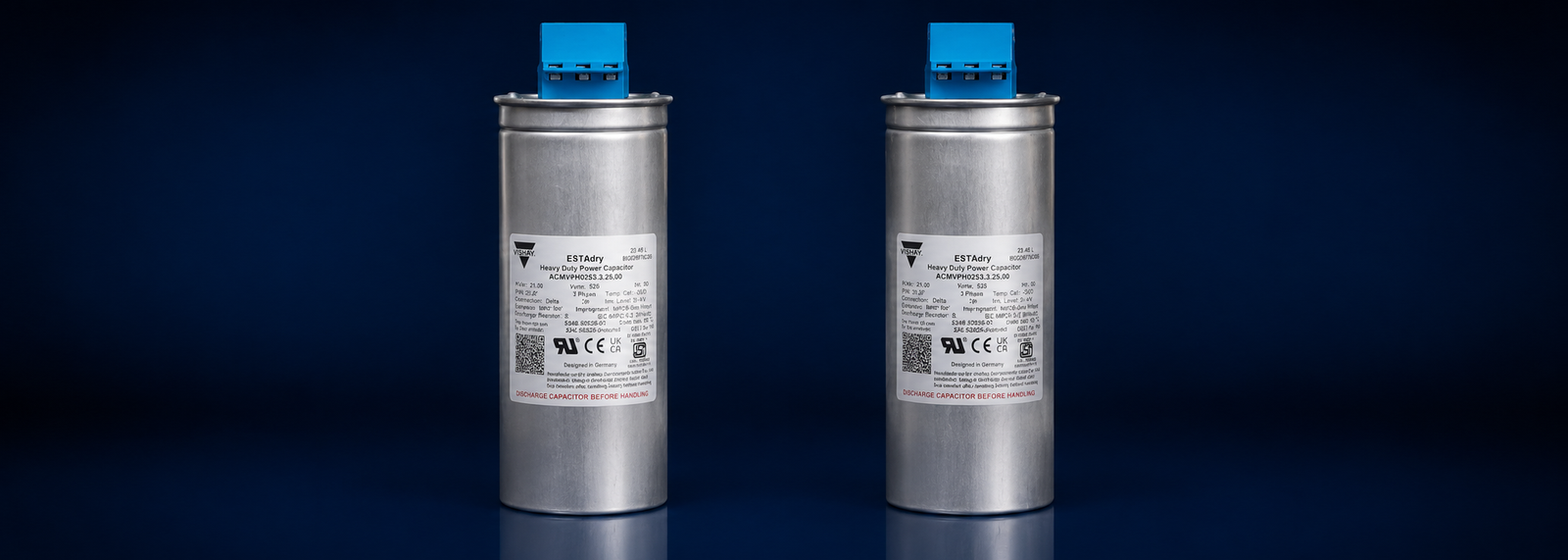

LV Capacitor View 1

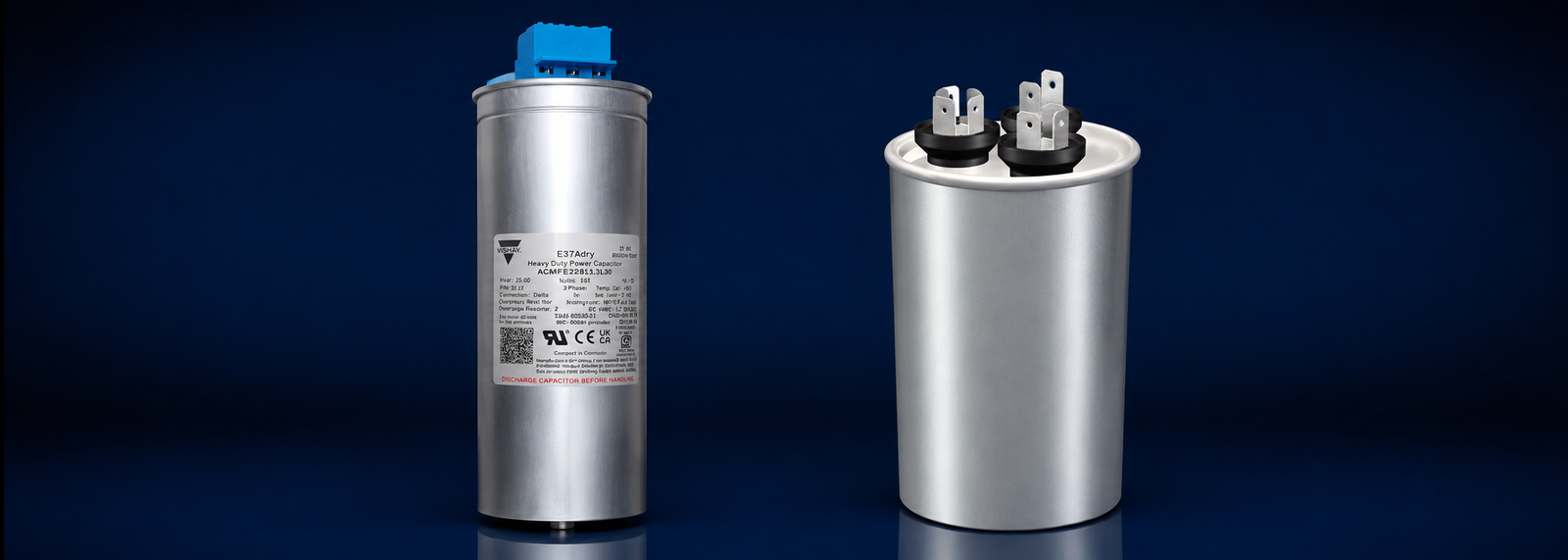

LV Capacitor View 2

LV Capacitor

VISHAY power capacitors offer 'Made in Germany' quality and form the optimum basis for both fixed installed capacitance for specific duties and controlled power factor correction systems. They are the first choice when consumers worldwide need to reduce reactive power, improve power quality and avoid charges for reactive demand. ALL ESTA MPP Power Factor Correction Capacitors are designed to VDE 0560-46 + 47, IEC 60831-1 + 2 and EN 60831-1 + 2, latest edition.

  • Self-healing at over voltage
  • Disconnected by an over pressure disconnector during dangerous overloading
  • High overload capacity
  • Long life expectancy
  • Safe reaction while overloading
  • Standards:   IEC 60831-1+2, IS 13340
  • Technology:   Metallized polypropylene (MPP/MKP)
  • Rated Voltage (UCN):   440 / 480 / 525 / 660 / 690V
  • Frequency:   50 Hz
  • Maximum Continuous Current:   1.8 x IN Amps
  • Losses:   < 0.25 ... < 0.45 W/kVAr
  • Casing:   Aluminum
