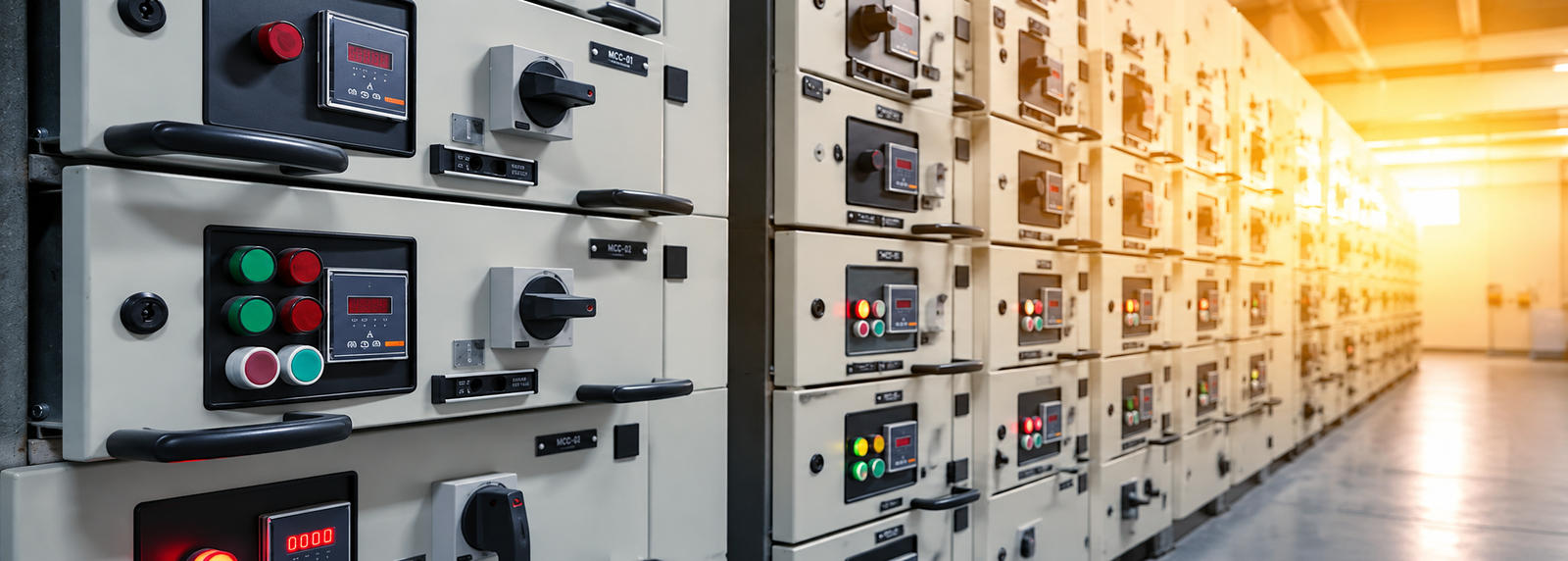

Draw-Out MCC (Motor Control Center) Panel
A Draw-Out MCC Panel is a modular motor control system designed with withdrawable feeder units that can be safely inserted or removed without disturbing the main power bus. It provides high operational safety, easy maintenance, and maximum system availability, making it ideal for critical industrial applications where continuous uptime is paramount.
Withdrawable (Draw-Out) feeder modules for easy maintenance
Safe isolation without shutting down the complete panel
High operational reliability and personnel safety
Quick replacement of faulty feeders
Reduced downtime and improved plant availability
Modular and expandable design
Compact, robust, and easy to operate
Suitable for critical motor control applications
Voltage: Up to 690 V AC, 3 Phase, 50/60 Hz
Rated Current: Up to 6300 A
Enclosure: CRCA Sheet Steel, IP42 / IP54 / IP55
Draw-Out Feeder: Fixed, Test, Isolated & Service Positions
