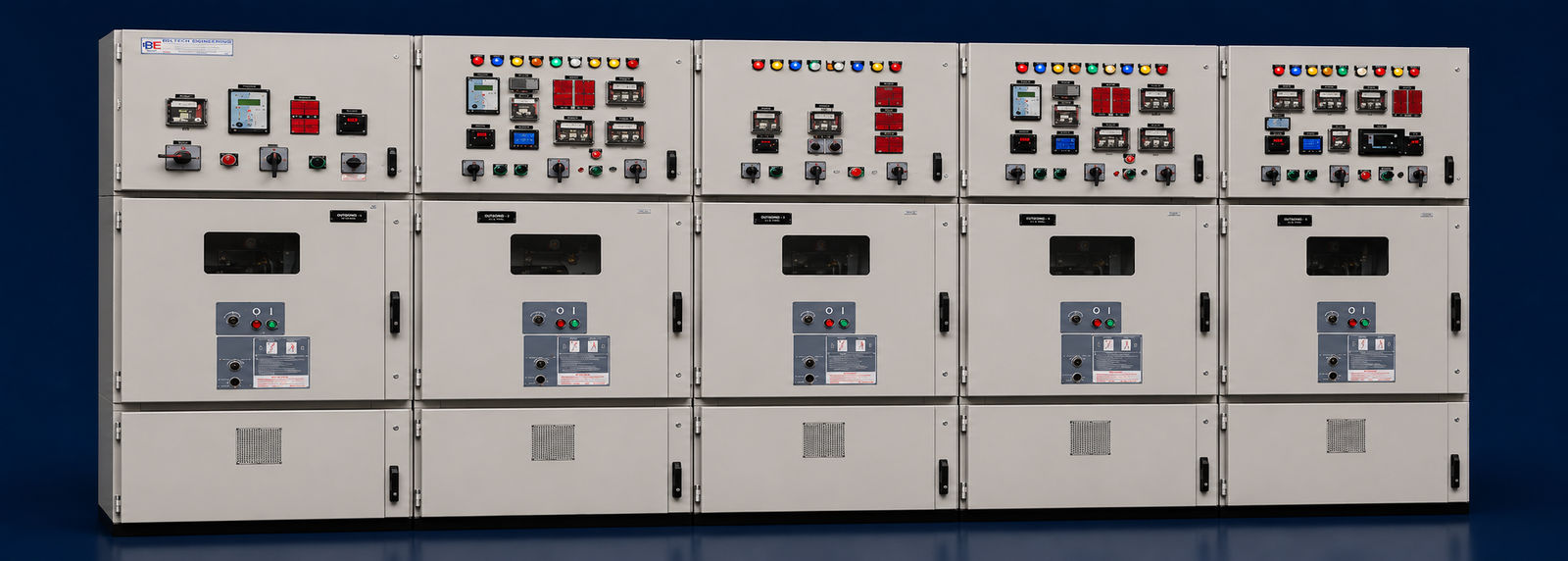

HT Switchboard – Indoor VCB Panel

An HT Switchboard – Indoor VCB (Vacuum Circuit Breaker) Panel is a heavy-duty, metal-clad medium-voltage switchgear system engineered engineered for absolute precision control, fault protection, separation, and safe distribution of electrical power in 11 kV and 33 kV applications. Boasting high fault interruption capacities alongside instantaneous arc-extinguishing attributes, this framework delivers critical protection mechanisms and robust system availability for data centers, grid networks, and core process industries.

Get a Quote

Industry-leading operational safety margins and continuous reliability
Vacuum Circuit Breakers featuring elite, maintenance-free arc-quenching
Microsecond fault detection and ultra-fast disruption processes
Multi-compartment metal-clad construction for localized safety partitions
Minimal routine maintenance parameters with prolonged operational lifespans
Masterfully integrated digital protection, system metering, and control hooks
Complete native compatibility with SCADA and industrial automation buses
Compact, highly modular blueprints designed for onsite scaling & extensions

Rated Insulation / Voltage: 11 kV / 33 kV
Rated Line Frequency: 50 Hz
Continuous Rated Current: Up to 3150 A
Short Circuit Breaking Capacity: Up to 40 kA (Application Dependent)
Central Interrupter Element: Vacuum Circuit Breaker (VCB)
Enclosure Type: Modular Metal-Clad, Indoor Application Type
Ingress Protection Level: IP4X / IP54 Compliant
Integrated Relays: Advanced Numerical & Intelligent Digital Protection Relays
Standards Compliance: IEC 62271 Series / IS 3427 & Associated Global Norms

Main Sub-Station Electrical Rooms
Critical Base-Load & Peaker Power Plants
High-Stress Steel Mills & Heavy Cement Industries
Continuous Upstream & Downstream Oil & Gas Facilities
Heavy Manufacturing & Automated Processing Plants
High-Rise Infrastructure & Commercial Corporate Hubs
Gigawatt-Scale Solar and Wind Renewable Energy Installations
Utility Bulk Power Distribution Networks
