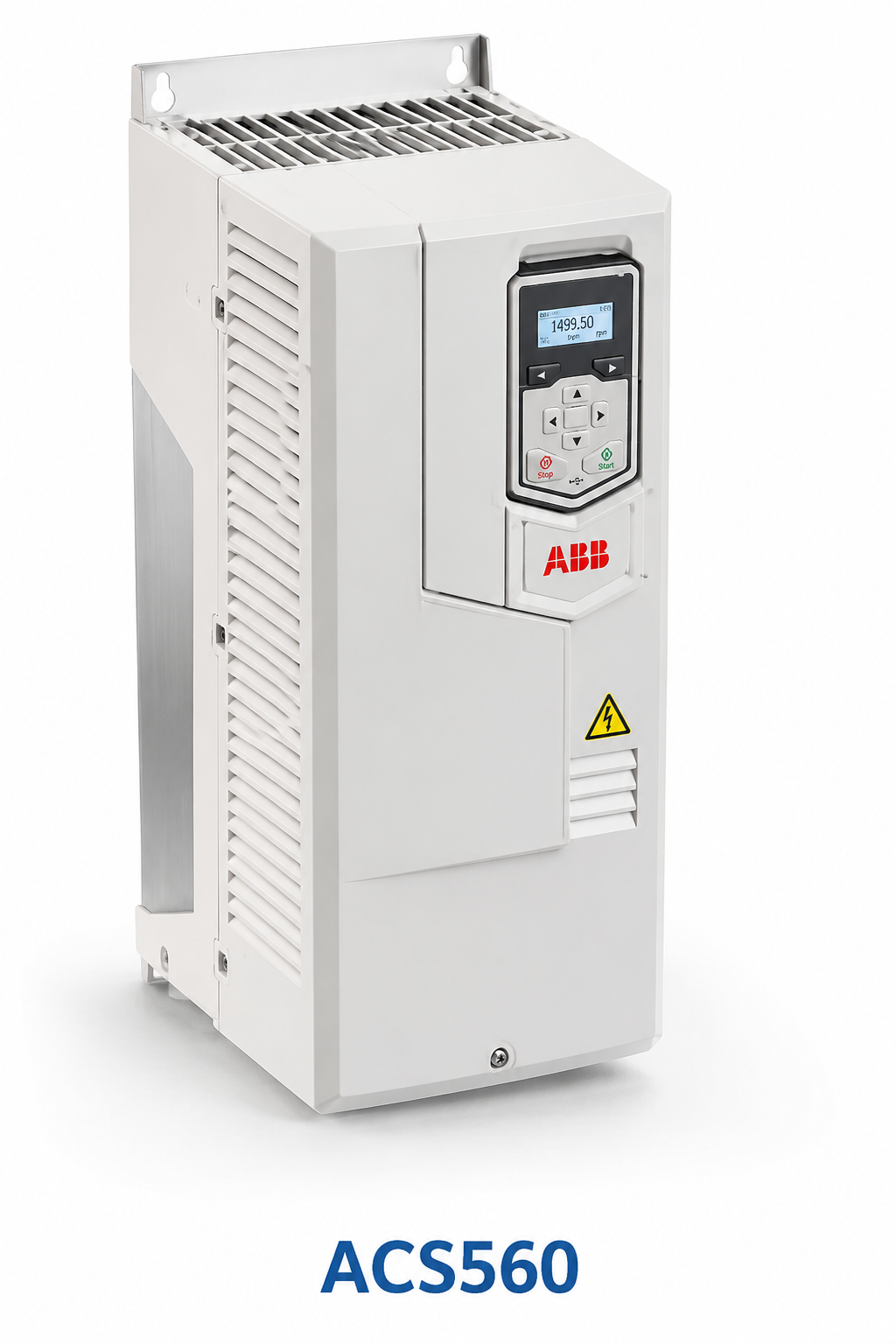

• Power Spectrum: 380-480V, 3-Phase AC, spanning from 0.75kW up to 250kW. Optimized flawlessly for both Normal & Heavy-Duty applications.
• Embedded Communication: Modbus RTU (RS-485) provided as native standard. Optional protocols include Profibus-DP, Profinet, Ethernet/IP, and CANopen.
• Functional Safety Matrix: Integrated Safe Torque Off (STO) standard protection core, fully compliant with IEC 61800-5-2 criteria.
• Harsh Environment Capability: Handles extreme environments up to 50°C ambient temperature without derating; operation scales up to 60°C with derating adjustments.
• Motor Control Type: Broad support for asynchronous induction and permanent magnet motors. Features precise Scalar (V/f) and sensorless operational control.

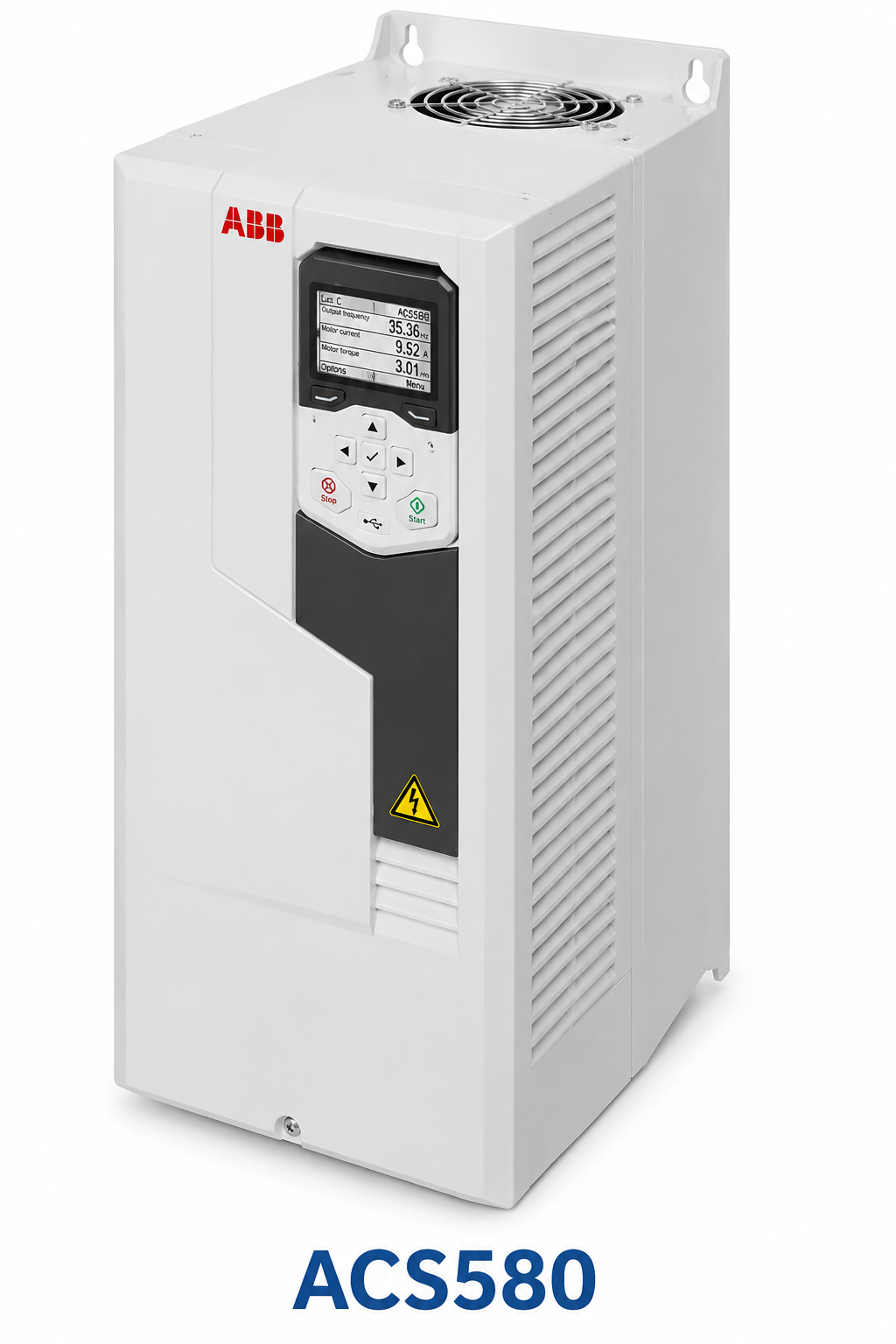

• Power Capability: 380-480V, 3-Phase AC input architecture, supporting capacity from 0.75 kW up to a massive 500 kW scale for high load management.
• Smart Communication: Modbus RTU (RS-485) built-in as baseline standard. Optional fieldbus support for Profibus-DP, Profinet, Ethernet/IP, and CANopen protocols.
• Safety Integration: Onboard Safe Torque Off (STO) active standard infrastructure module matching the international IEC 61800-5-2 guidelines.
• Environmental Resilience: High ambient operational ceiling up to 50°C without risk of performance loss; functions up to 60°C seamlessly with accurate derating.
• Control Versatility: Direct control over asynchronous induction and premium permanent magnet configurations via dynamic Scalar (V/f) or robust sensorless modes.

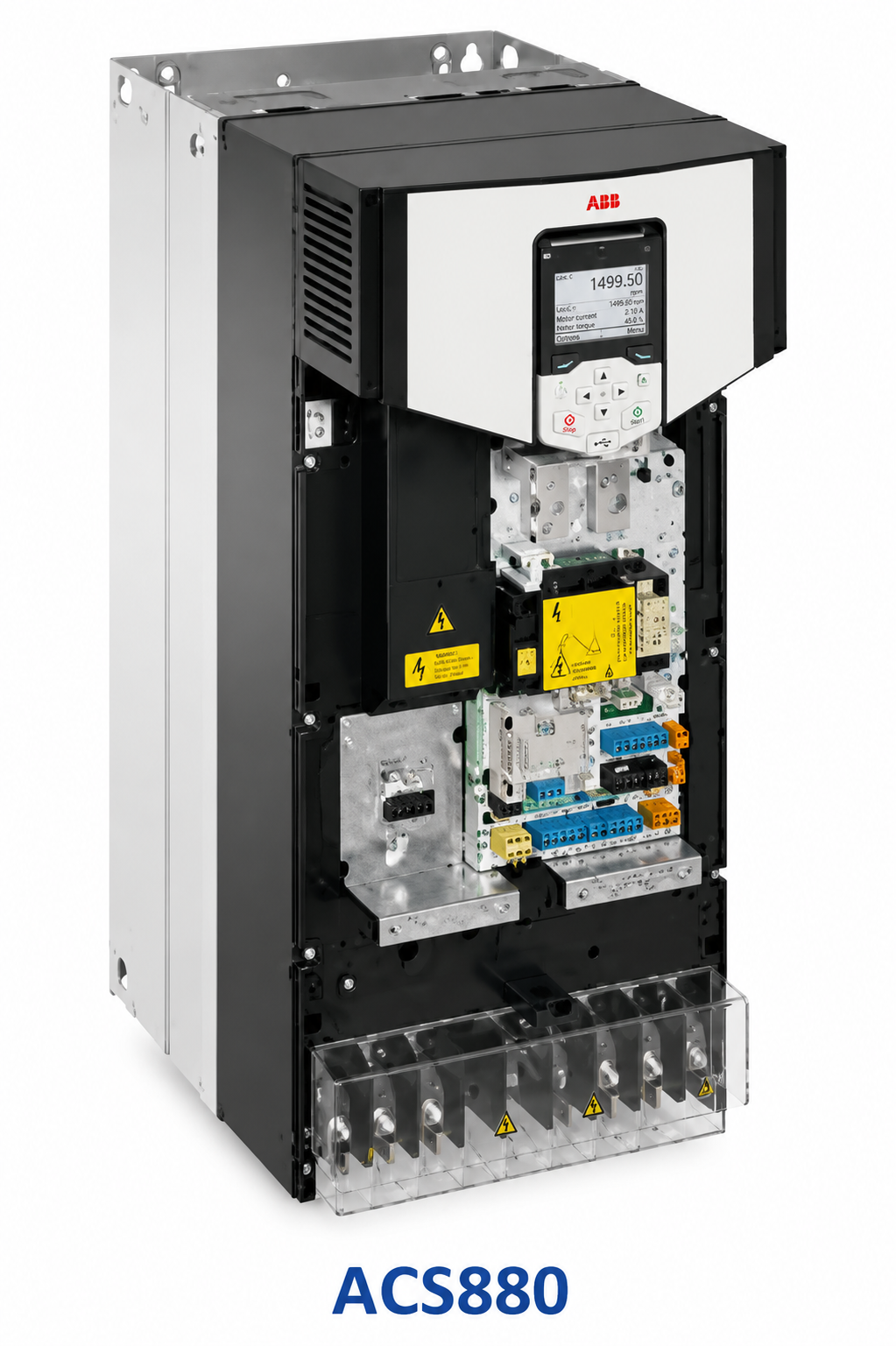

• Heavy Power Threshold: Dual architecture capability supporting 380-480 V & 500-690 V 3-Phase AC grids. Power starts at 0.55kW and scales into multi-MW extreme heavy duty ratings.
• Elite Safety Features: Multi-tier safety structure encompassing STO, SSI, SLS, SMS, and SBC fully certified according to specialized IEC 61800-5-2 protocols.
• Advanced Network: Standard onboard Modbus RTU (RS-485). Advanced interface adapters available for Profibus-DP, Profinet, Ethernet/IP, CANopen, and Modbus TCP.
• Ultimate Protection: Comes standard with chemically coated internal PCBs (Class 3C3, 3S3). Withstands 55°C without derating and up to 60°C smoothly with derating parameters.
• Premium Control Engine: Features Direct Torque Control (DTC) for absolute precise high dynamic performance. Operates flawlessly with or without encoder feedback over Induction, PM, and Synchronous Reluctance (SynRM) setups.

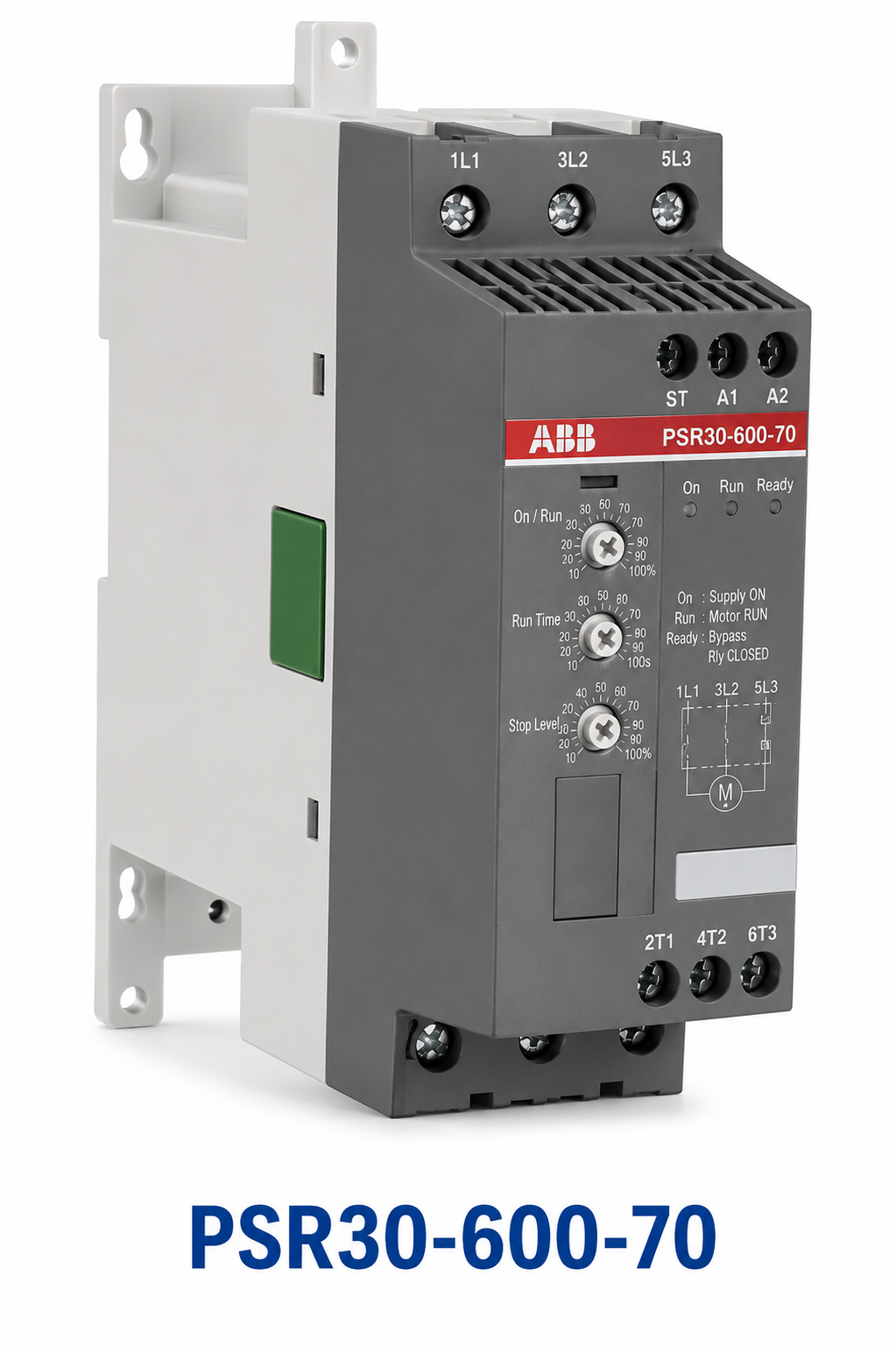

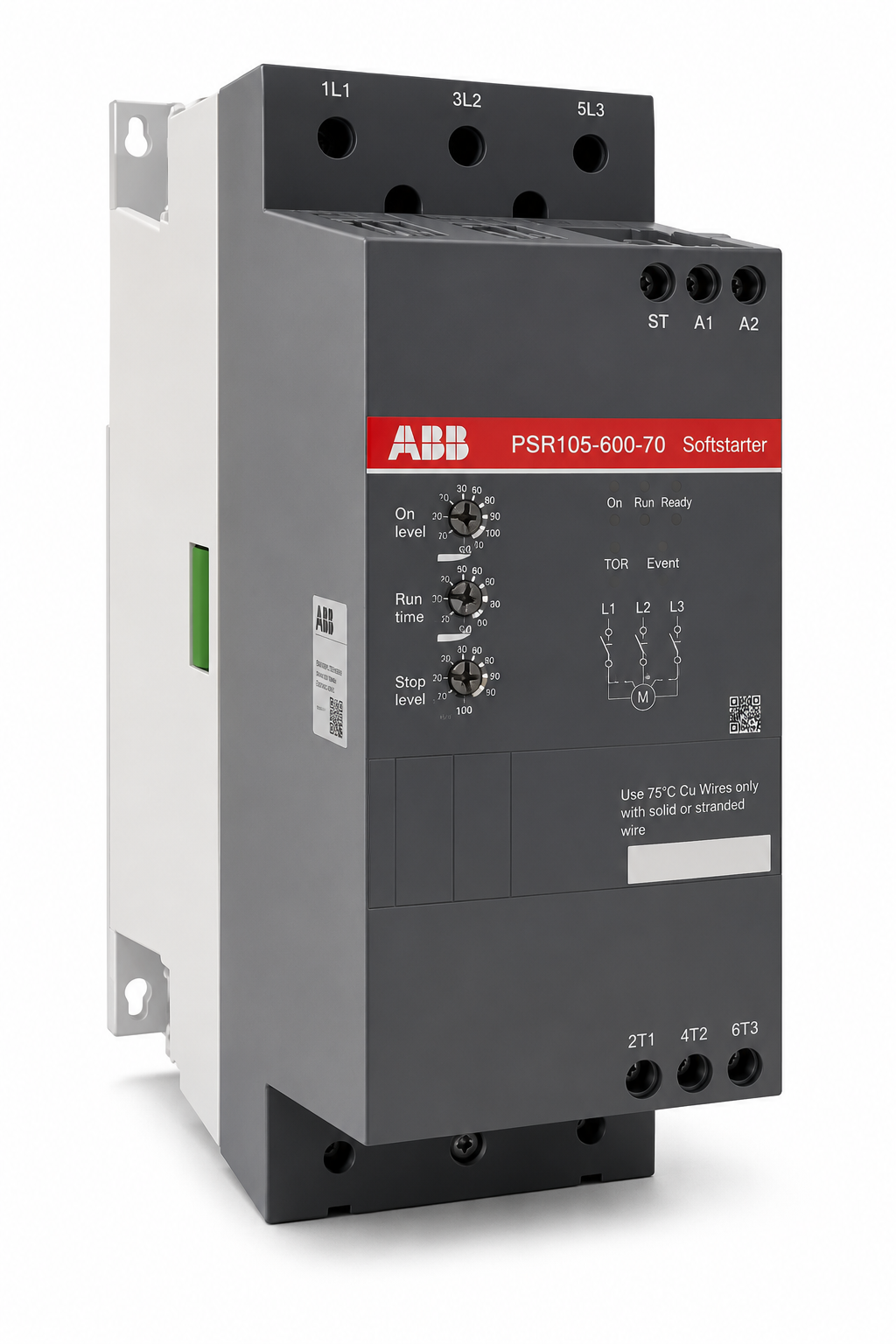

• Operational Ratings: Handles current levels spanning 3A to 105A with a wide supply configuration range of 208-600V AC at 50/60 Hz.
• Application Suitability: Engineered for light to medium-duty operations like pumping stations, fan control, automated industrial compressors, and system conveyors.
• Starting Mechanism: Utilizes linear voltage ramp soft start and soft stop control curves for smooth physical motor behavior.
• Built-in Architecture: Features an integrated bypass contactor, dramatically minimizing operational power dissipation while ensuring highly compact control panel sizing layout.

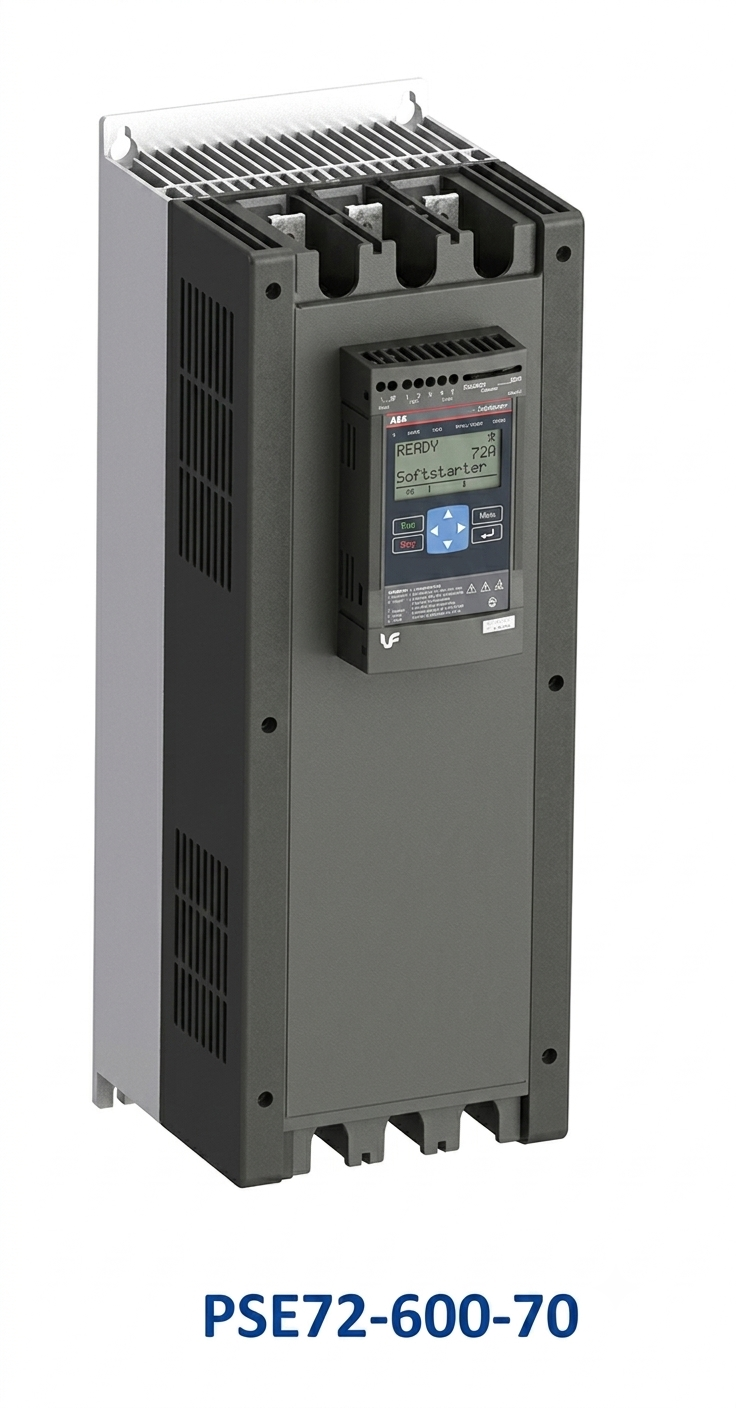

• High-Capacity Ratings: Maximum operational current rating up to 370 A, supporting motor power ranges from 7.5kW up to a high-scale 250kW limit. (Rated Voltage: 208-600V AC, 50/60Hz)
• Network Interfacing: Modbus RTU standard embedded communication. Flexible adapter module options for advanced Profibus, DeviceNet, and Ethernet/IP protocols.
• Smart Algorithm: Employs next-gen voltage ramp control fused with precise dual torque algorithms for premium non-linear water pumping protection.
• Complete Electronic Defense: Full integrated electronic protection profiles against Motor Overload, Phase Loss, Phase Imbalance, and extreme Thermal conditions. Built to IP20 panel standards. Conforms to IEC 60947-4-2, CE, and UL.

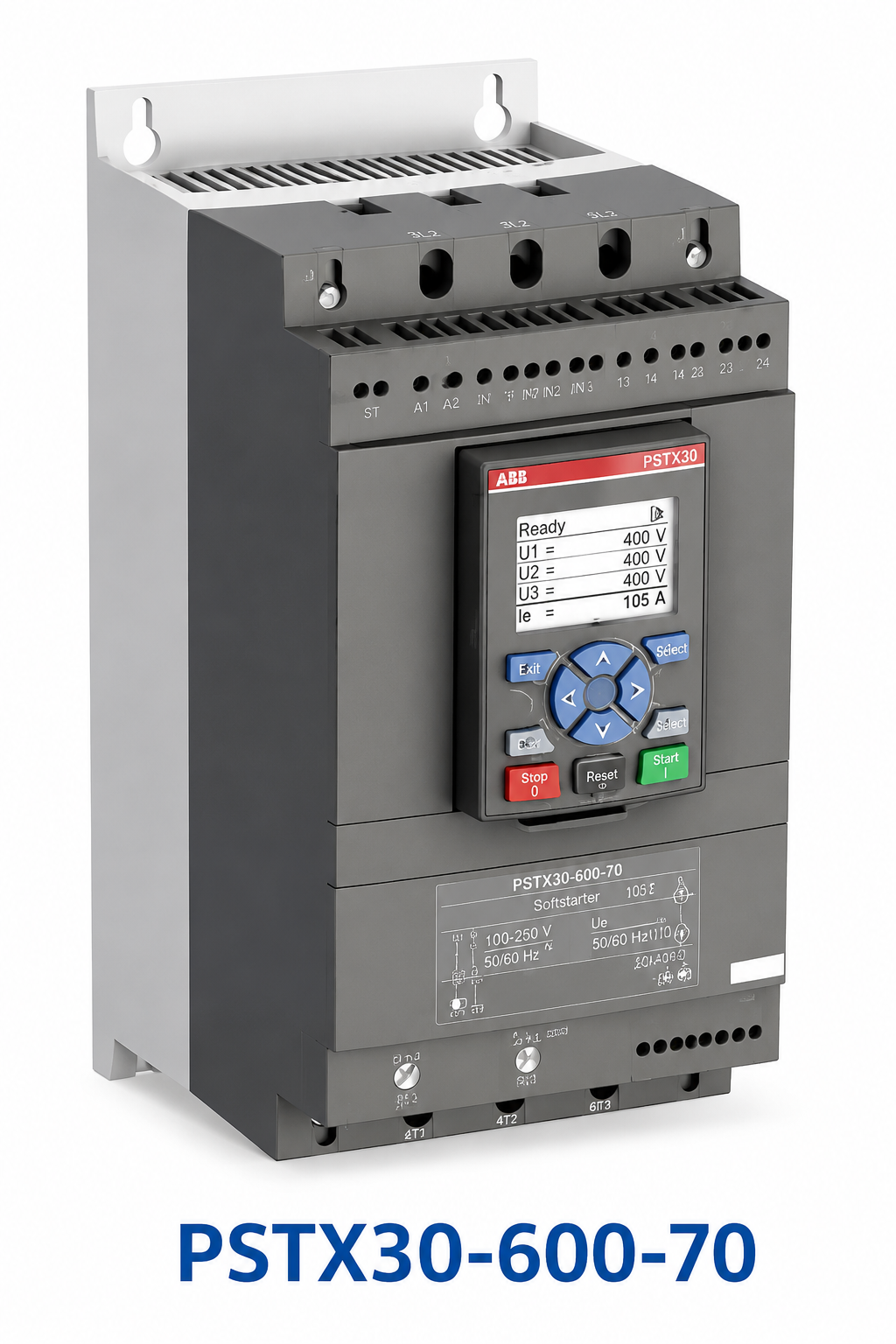

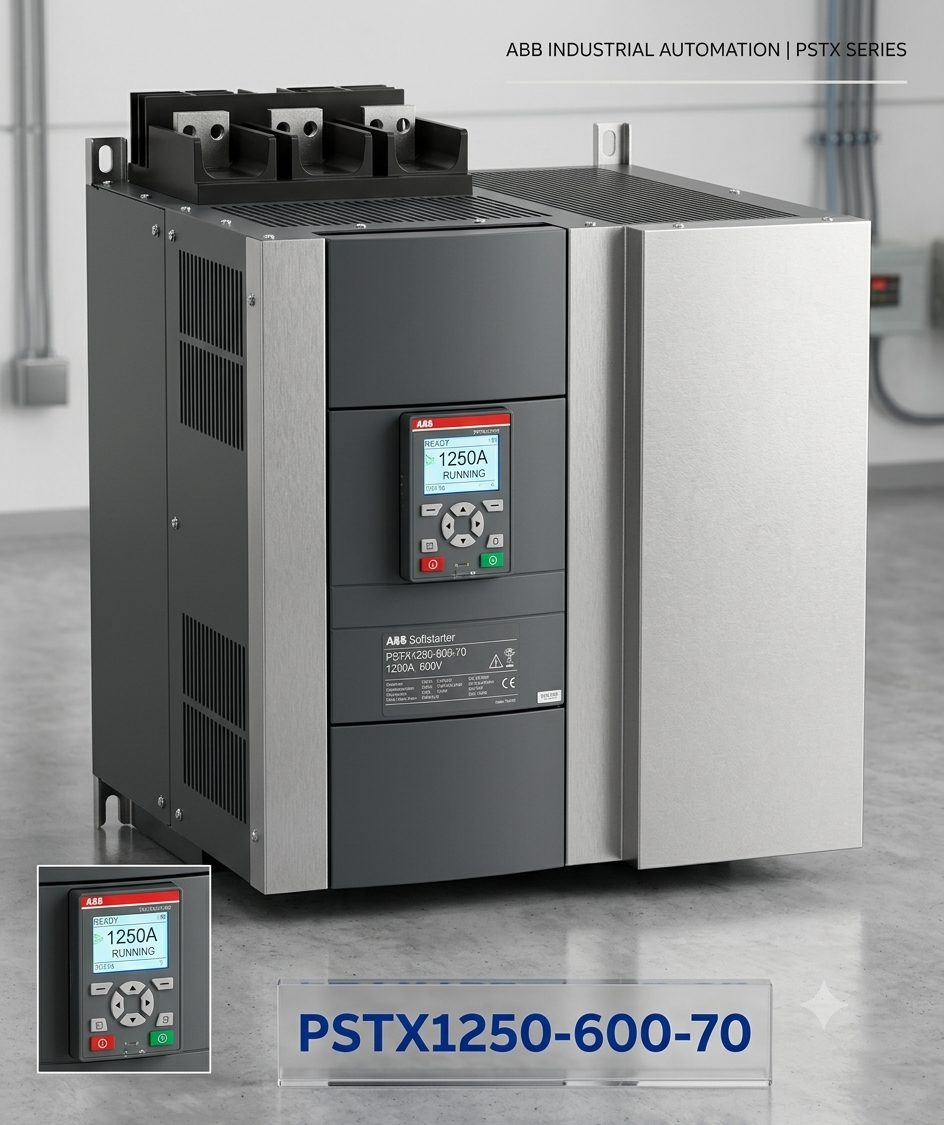

ABB PSTX series soft starters represent high-tier motor control architecture designed exclusively for large scale motors and highly critical industrial processes.

• Extreme Power Reach: Handles extensive ratings from 30 A up to an industrial scale 1250 A. Fully supports motor dimensions up to 900kW across voltages reaching 208-690 V AC (50/60 Hz).
• Control Excellence: Built with state-of-the-art Advanced Torque Control System (TCS) technology to eliminate mechanical shock waves on startup.
• Full Defense Suitcase: Total motor protection matrix including precise Overload protection, mechanical Jam security, Motor Stall tracking, Phase Loss diagnostics, and active thermal networks.
• Enterprise Data Flow: Native connectivity configuration over enterprise networks via dedicated modules including Ethernet, Modbus, Profibus, and Profinet.
