Altivar VFD & ATS Soft Starter Showcase

Industrial Automation Core

Altivar Series Motor Management (VFD)

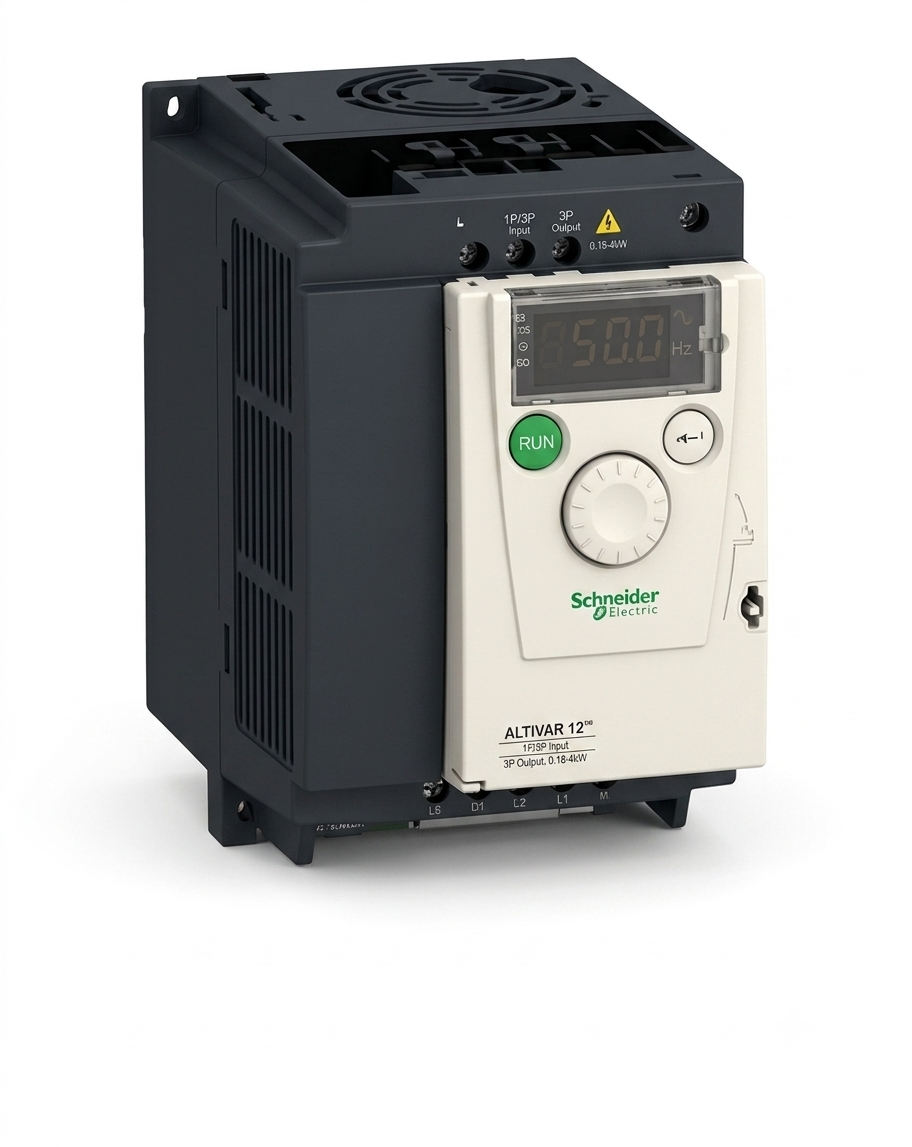

Altivar 12

Compact Powerhouse

Variable Speed Drives for commercial equipment from 0.18 to 4 kW — small in size but big on performance!

Voltage/Power Range: 200V 1ph up to 2.2kW; 200V 3ph up to 4kW in Heavy duty.
Communication Embedded: Modbus
Harsh Environment: Up to 60°C with derating.
Motor/Control Type: Asynchronous / without feedback.

Altivar 320 / 340 Series

Advanced Machine Solutions

Variable speed drives for simple and advance machines from 0.18 to 15kW — Higher performance, not costs.

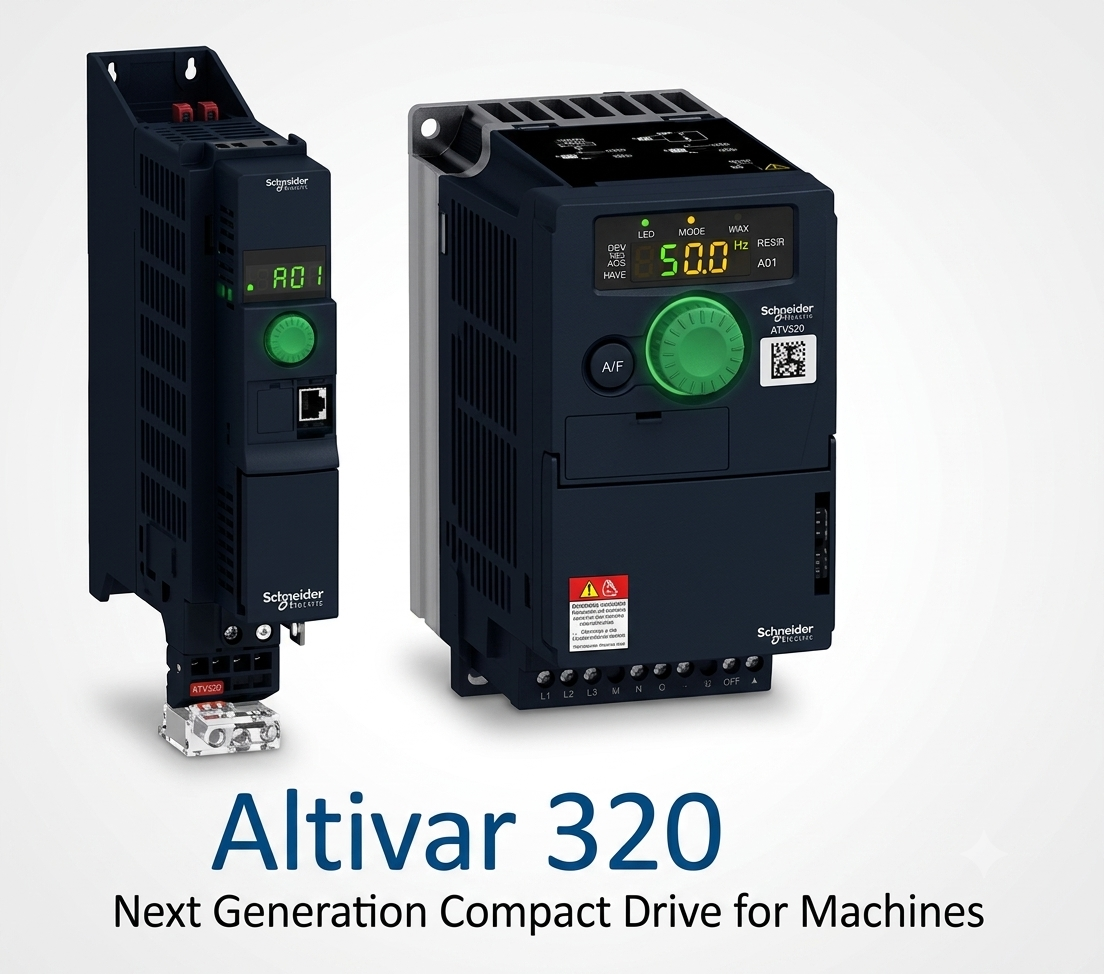

Altivar 320: 200V 1ph up to 2.2kW; 200V 3ph up to 15kW; 400V 3ph up to 15kW; 600V 3ph up to 15kW in Heavy duty.

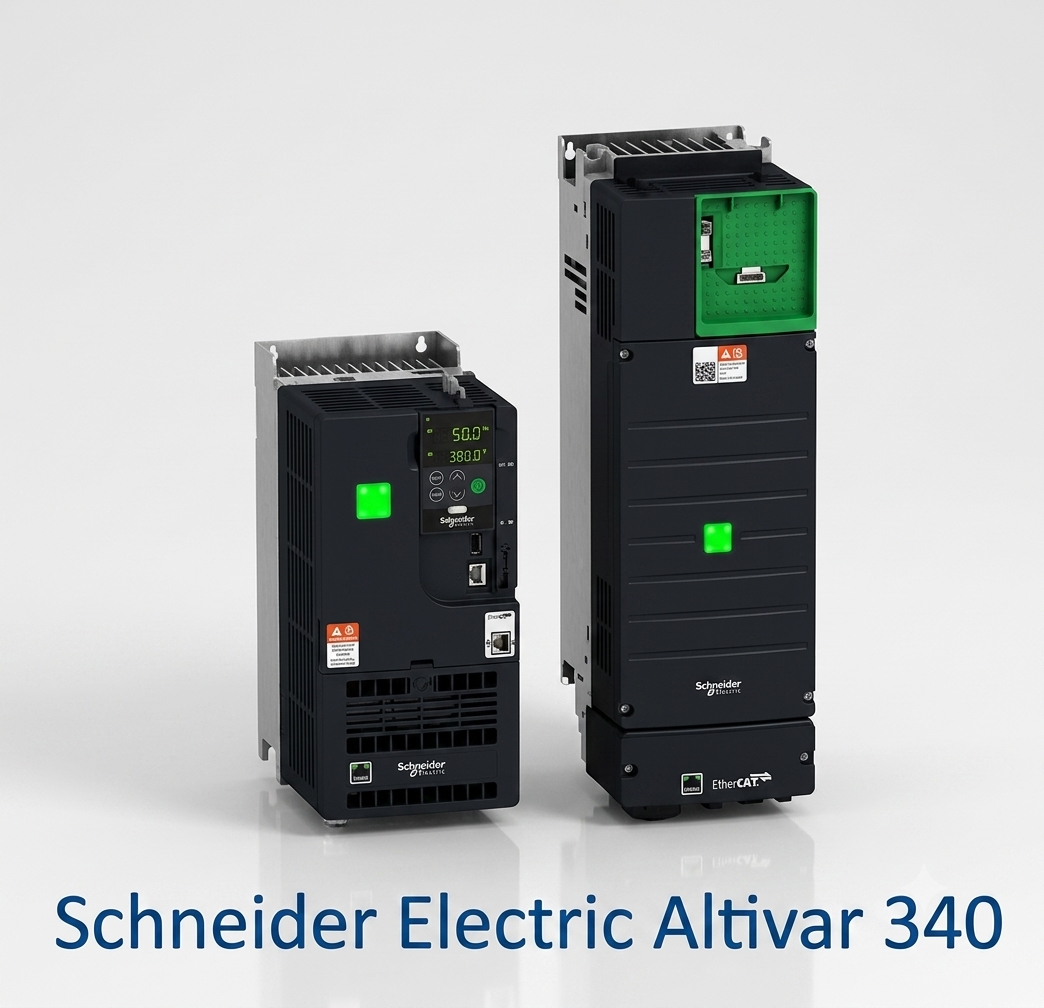

Altivar 340: 380-480V 3ph from 0.75 to 75kW in Heavy duty.
Communication Embedded: CANopen; Modbus; Dual Port Multi Ethernet.
Functional Safety: STO; SLS; SS1; SMS; GDL.
Harsh Environment: 3C3; 3S2 up to 60°C with derating.
Motor/Control Type: Asynchronous and synchronous motors / without feedback.

Altivar Process ATV600

Fluid Management Expert

Empowered operators, optimized assets, smart control — Variable speed drive for fluid management from 0.75kW to 800kW.

Wall Mounting & Cabinet Integration: 200V 3ph up to 75kW; 400V 3ph up to 315 kW; 500…690V 3ph up to 90kW.
Floor Standing: Fully customizable enclosed IP21…55 solution up to 800kW.
Harsh Environment: Up to 60°C with derating, 3C3/3S3 coated, variety of solution (IP20/21/55 & UL Type 1/12).
Application Specialty: Fluid applications control expertise, native Ethernet connectivity, continuity of service.

Altivar Process ATV900

Demanding Applications Choice

Variable speed drive for demanding applications from 0.75kW to 800kW — performance, robustness and connectivity.

Wall Mounting and Cabinet Integration: 200V 3ph up to 75kW; 400V 3ph up to 315kW; 500…690V 3ph up to 90kW.
Floor Standing: Fully customizable enclosed IP21…55 solutions up to 800kW.
Harsh Environment: Up to 60°C with derating, 3C3/3S3 coated, variety of solutions (IP20/21/55 & UL Type 1/12).
Control Expertise: Solid & movement applications control expertise, native Ethernet connectivity, continuity of service.

Smooth Motor Acceleration Portfolio

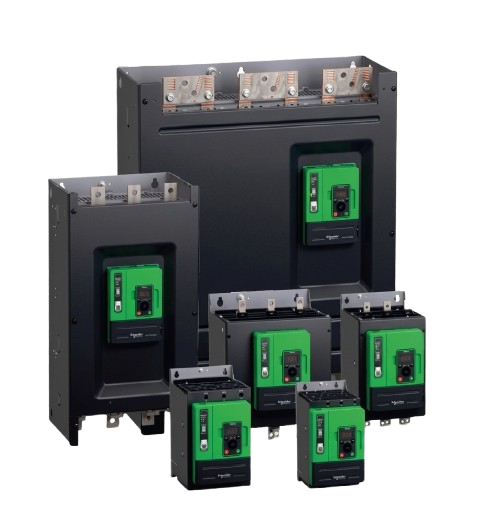

ATS Series Digital Soft Starter Portfolio

Premium Motor Management Feature

Soft start-soft units with their patented TCS torque control system. Excellent bypass possibilities (at the end or start) are available to maintain optimal operational loop integrity.

ATS Product Capabilities

Range of Products / Electrical Matrix

Single phase 230V AC (-15 to +10%): 1.1 kW / 1.5 HP to 900kW
3-phase 230V AC to 690V AC (up to 20%): 0.75kW / 1HP to 3 kW

Unique Features of ATS Family:

Separate set of terminals are integrated to terminate cables going to bypass contactor.
Even in bypass mode inbuilt electronic thermal overload remains in circuit.
Integrated Modbus communication system.

Industrial Optimization Layer

Smart Pumping Solutions & System Efficiencies

Our company provides Smart Pumping Solutions that combine intelligent drives, sensors, and advanced software to optimize pump performance. These systems regulate flow and pressure automatically, improving efficiency, reducing energy consumption, and lowering maintenance costs.

Energy Efficiency

Up to 30% energy saving through optimized pump operation.

System Efficiency

Extends equipment life with predictive maintenance and real-time monitoring.

Pump Efficiency

Ensures optimal flow and pressure, reducing mechanical wear.

Traceability

Full system visibility with data logging and remote monitoring control.

Features & Systems Integration:

VFD/Soft Starter based intelligent pump control

Integration with PLC, SCADA & IIoT Platforms

Real-time pressure, flow & energy monitoring

Predictive maintenance & reduced downtime

Lower operating and maintenance cost
