High-Capacity Heavy Industrial Power Mainframe

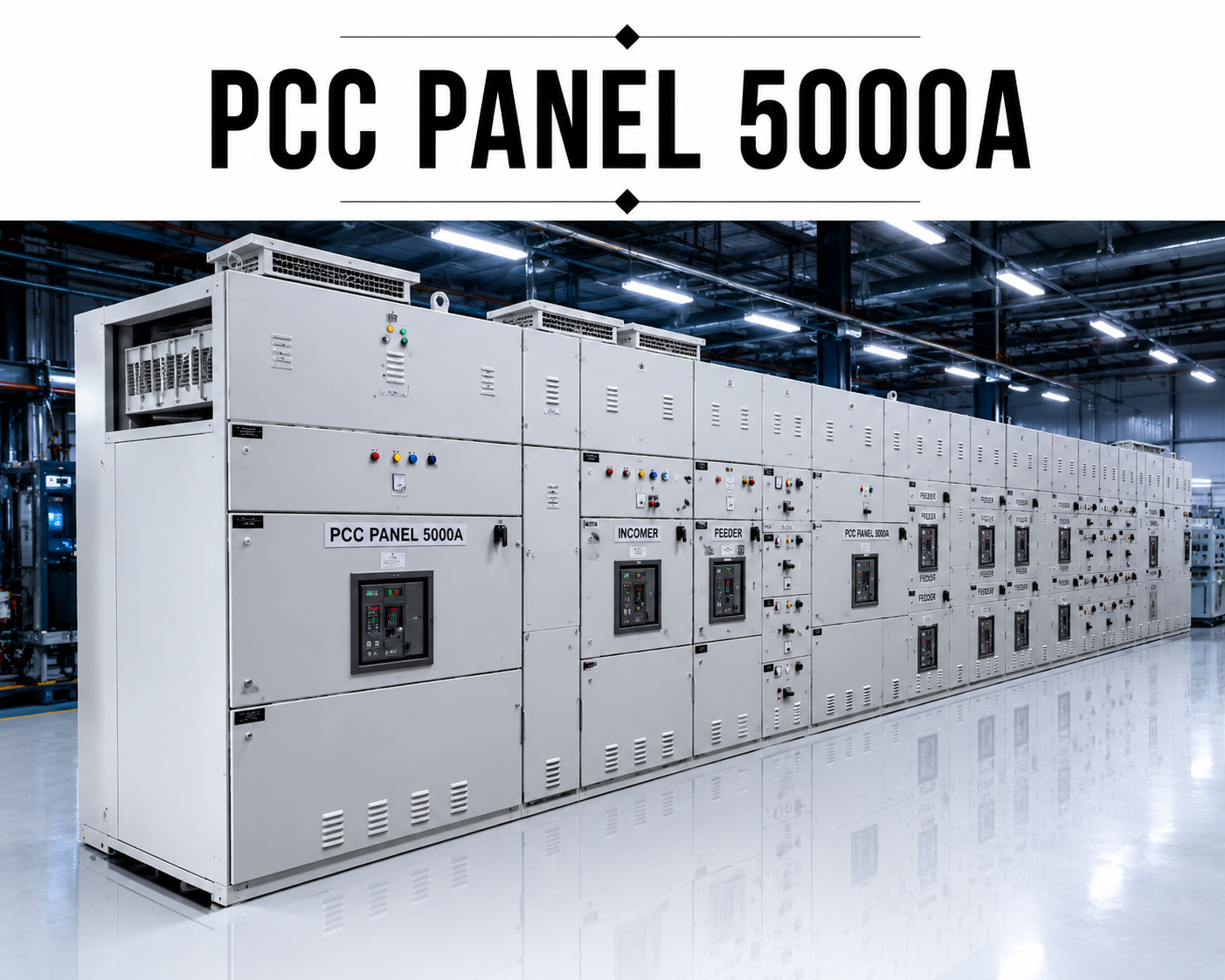

Engineered to manage mass power grids for major manufacturing plants, our 5000A Power Control Center (PCC) Panels serve as the heavy-duty distribution foundation. Designed to sustain immense current densities, these massive panels incorporate high-fault Air Circuit Breakers (ACBs) and custom-profile tinned copper busbars to reliably distribute bulk electrical energy across large-scale industrial infrastructures.
Fitted with high-conductivity, multi-run electrolytic grade copper busbars rated safely for 5000A continuous current with heat shrink sleeving.
Robust mechanical bracing ensures the entire structure flawlessly withstands extreme fault surges up to 65kA/85kA for a full 1 second.
Features 5000A 3-Pole/4-Pole Draw-out type Air Circuit Breakers (ACBs) equipped with advanced microprocessor-based trip units.
Built with reliable Form 4 segregation to fully isolate busbars, cables, and switchgears into distinct fireproof compartments.
Fitted with Class 0.2S multi-function meters to dynamically log total harmonic distortion (THD), neutral currents, and power peaks.
Employs dynamic roof exhaust blowers combined with custom panel ventilation ducts to maintain zero temperature derating at full 5000A load.
