Advanced Harmonic Attenuation
Specially engineered to suppress current and voltage harmonic distortions in low-voltage industrial networks. These series detuned and tuned reactors protect internal electronics from massive overheating, significantly boost grid system reliability, and maximize the operational lifecycle of your entire component matrix.

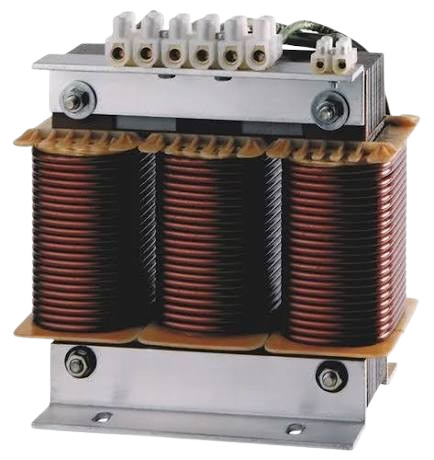

Premium low-loss, iron core, dry-type 3-phase series reactor built specifically for harmonic filter configurations.
Flawlessly handles 230 V to 690 V system profiles across 50/60 Hz networks, with insulation capabilities reaching up to 1000 V.
Designed for series coupling with active standard capacitor blocks scaled evenly from 5 Kvar up to 150 Kvar limits.
Provides precise detuning options ranging securely from 7% to 14% factors to counter target frequency profiles.
Maintains absolute inductivity linear thresholds up to 200% of the standard rated current parameters without saturation.
Wrapped in robust Class H material systems to sustain harsh high-temperature conditions in crowded panels.
Fully equipped with integrated thermal switches that act as real-time watchdogs against dangerous overheat states.
Available in premium high-conductivity Copper or high-grade Aluminum coils depending on structural load preferences.
Performs heavy current-limiting protective buffers while acting as tailored Detune & Tune Harmonic Filters.
